NdFeB magnets -The Strongest Permanent Magnets Today
NdFeB(Neodymium-Iron-Boron) magnet is used most popular by people in industry and our daily life, because it has superior magnetic properties than other kind of magnets.About NdFeB irregular shape magnet:
Material: Sintered NdFeB Magnet/Sintered Neodymium Magnet
Shape: irregular shape
Size: As customer's design
Grade: N30-N52, M, H, SH, EH, UH
Magnetic properties: Hcj, Hcb, BH, Br, BHmax, working temperature
Coating: Ni/Nickel, NicuNi, Black nickel, Gold, Silver, Chrome, Parylene, Zn/Zinc, Color Zinc, Tin, Cooper, Epoxy etc
Application: widely used in sensor, speakers, reed switches, motor, rotor, wind turbines/generators, AC/DC motors, drive motors, servo motors etc
Magnetization directions: by Axial or by radial
We customize neodymium cylinder magnet according to customers' requirements, drawing or actual samples, magnet grade N, M, H, SH, UH, EH, AH.
1. Specifications of Sintered Neodymium Magnet
Place of Origin | Guangdong, China(Mainland) |
Magnet Type | Sintered NeFeB / rare earth / Permanent |
Composite | Neodymium-Iron-Boron |
Grade | N35-N54( M, H, SH, UH, EH, AH series ) |
Working Temperature | The Max. temp. is up to 80 / 100 /120 /150 / 230 celsius under different grade. |
Tolerance | +/-0.03 to +/-0.15 |
Shape of Magnet | Disc, Cylinder, Block, Ring, Sphere(ball), Arc Segment(Tile) and more custom shapes |
Size | various sizes custom-make welcome |
Coating | Ni, Zn, NiCuNi, gold, silver, copper, epoxy, etc. |
Magnetization Direction | Axially Magnetized, Radially Magnetized(Diametrically), Multi-poles Magnetized or other customized |
Quality System/Certificate | IATF16949:2016,ISO9001:2000; QS-9000, SGS,RoHS,REACH |
Application | Industrial Magnet, Toy Magnet, Health Magnet and more |
Packaging | Antimagnetic Packaging / Neutral Packing / Custom-make welcome |
Shipping Method | by see, by air or by int'l express |
Lead Time | 10~25days |

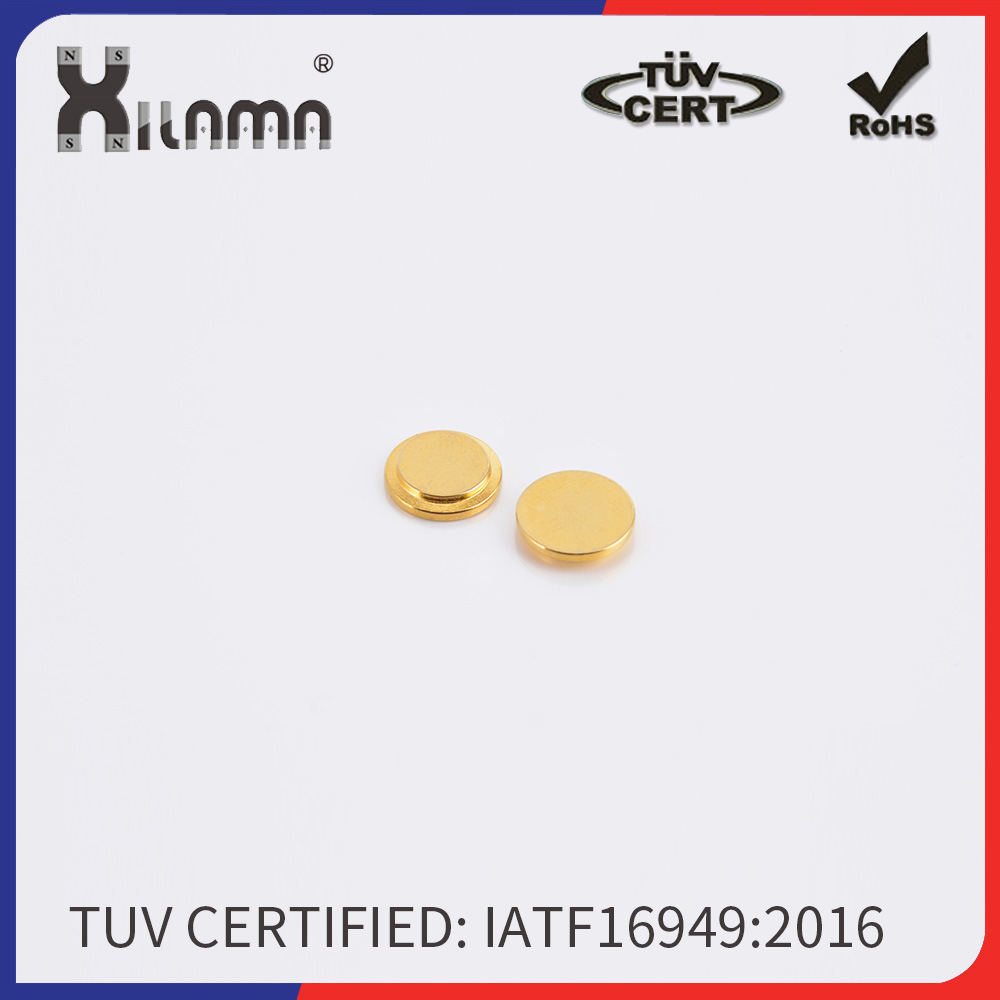

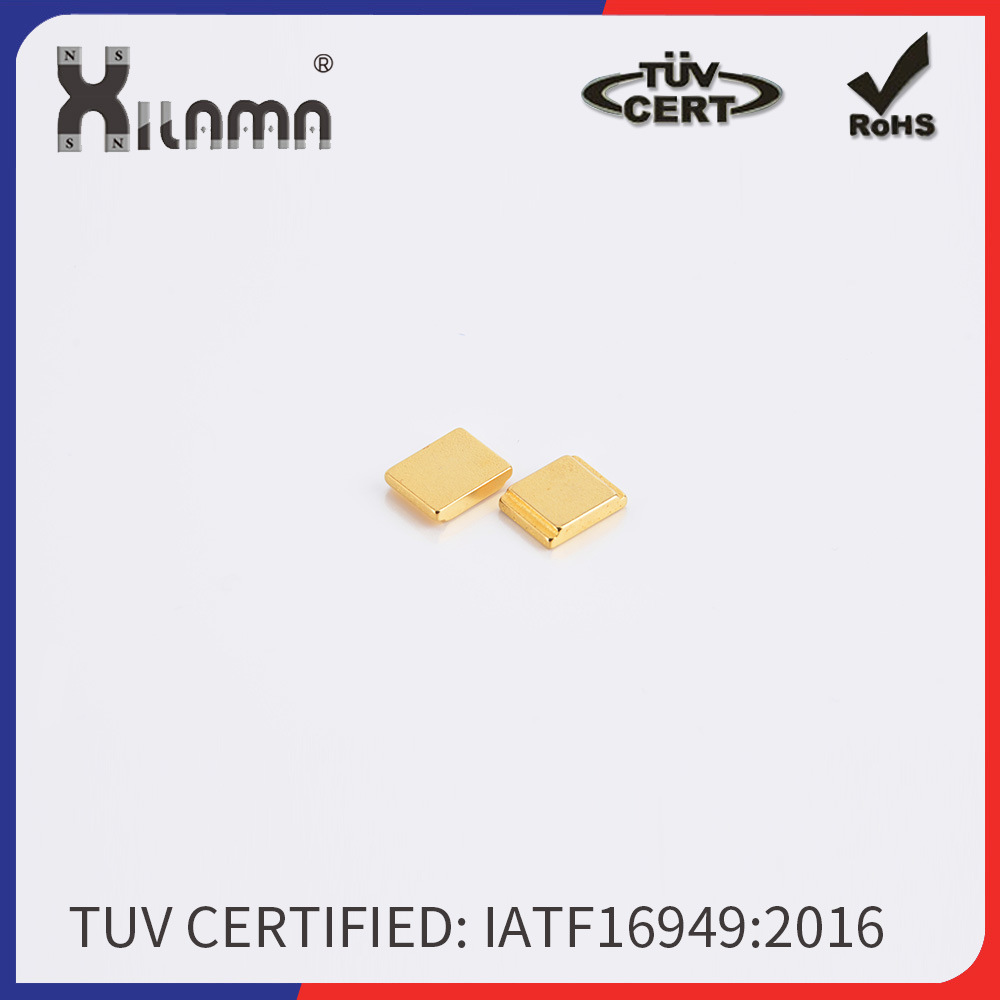

2. Magnet Display
Neodymium-Iron-Boron (NdFeB) magnets are composed of neodymium, iron, boron and a few transition metals. These kind of permanent magnets are extremely strong and can be producted in different shapes and sizes (ie. arcs, blocks, discs, rings).
It has higher unit magnetic properties than other magnet and assure you of smaller size and lighter weight in designing devices.
3. Applications of Sintered NdFeB Magnets
The permanent magnets, which are called the next centurial magnets, are used in a wide range of industries including computer, automobile, electric machinary, electro-sound devices, automatic control, magnetic force mechanism, microwave commnication, petrochemical industry, medical apparatus and equipment. The magnets are the ideal materials for the subminiature magnetic devices with high function.NdFeB magnets is especially suitable for developing those new products demanding high quality, small volume and light weight.
· Automotive Starters | · Microphone Assemblies |
· Computer Rigid Disc Drives | · Particle Accelerators |
· DC Motors | · Printers |
· Headphone | · Relays |
· Halbach Arrays | · Servo Motors |
· Linear Actuators | · Stepper Motors |
· Linear Motors | · Switches |
· Loud Speakers | · Undulators |
· Magnetic Bearings | · Vacuum Deposition |
· Magnetic Couplings | · Voice Coil Motors (VCM) |
· Magnetic Separators | · Wind Turbines |
4. Technical Data of Sintered NdFeB Magnets
MAGNETIC AND PHYSICAL CHARACTERISTICS
Series | Grade | Remanence | Coercive Force | Intrinsic Coercive force | Max. Energy Product | Max. Working Temp. | |||||
Br | Hcb | Hci | (BH) max | L/D=0.7 | |||||||
T | kGs | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | ºC | °F | ||
N | N35 | 1.17-1.24 | 11.7-12.4 | ≥860 | ≥10.8 | ≥955 | ≥12 | 263-295 | 33-37 | 80 | 176 |
N38 | 1.22-1.30 | 12.2-13.0 | ≥860 | ≥10.8 | ≥955 | ≥12 | 287-318 | 36-40 | 80 | 176 | |
N40 | 1.26-1.32 | 12.6-13.2 | ≥860 | ≥10.8 | ≥955 | ≥12 | 302-334 | 38-42 | 80 | 176 | |
N42 | 1.29-1.35 | 12.9-13.5 | ≥860 | ≥10.8 | ≥955 | ≥12 | 318-350 | 40-44 | 80 | 176 | |
N45 | 1.32-1.38 | 13.2-13.8 | ≥860 | ≥10.8 | ≥955 | ≥12 | 334-366 | 42-46 | 80 | 176 | |
N48 | 1.37-1.43 | 13.7-14.3 | ≥836 | ≥10.5 | ≥876 | ≥11 | 358-390 | 45-49 | 80 | 176 | |
N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 374-406 | 47-51 | 80 | 176 | |
N52 | 1.42-1.48 | 14.2-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 390-422 | 49-53 | 80 | 176 | |
N54 | 1.45-1.51 | 14.5-15.1 | ≥836 | ≥10.5 | ≥876 | ≥11 | 398-438 | 50-55 | 80 | 176 | |
M | N35M | 1.17-1.24 | 11.7-12.4 | ≥860 | ≥10.8 | ≥1114 | ≥14 | 263-295 | 33-37 | 100 | 212 |
N38M | 1.22-1.30 | 12.2-13.0 | ≥915 | ≥11.5 | ≥1114 | ≥14 | 287-318 | 36-40 | 100 | 212 | |
N40M | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1114 | ≥14 | 302-334 | 38-42 | 100 | 212 | |
N42M | 1.29-1.35 | 12.9-13.5 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-350 | 40-44 | 100 | 212 | |
N45M | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1114 | ≥14 | 334-366 | 42-46 | 100 | 212 | |
N48M | 1.37-1.43 | 13.7-14.3 | ≥1019 | ≥12.8 | ≥1114 | ≥14 | 358-390 | 45-49 | 100 | 212 | |
N50M | 1.40-1.45 | 14.0-14.5 | ≥1043 | ≥13.1 | ≥1114 | ≥14 | 374-406 | 47-51 | 100 | 212 | |
N52M | 1.42-1.48 | 14.2-14.8 | ≥1059 | ≥13.3 | ≥1114 | ≥14 | 390-422 | 49-53 | 100 | 212 | |
H | N35H | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11 | ≥1350 | ≥17 | 263-295 | 33-37 | 120 | 248 |
N38H | 1.22-1.30 | 12.2-13.0 | ≥915 | ≥11.5 | ≥1350 | ≥17 | 287-318 | 36-40 | 120 | 248 | |
N40H | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1350 | ≥17 | 302-334 | 38-42 | 120 | 248 | |
N42H | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1350 | ≥17 | 318-350 | 40-44 | 120 | 248 | |
N45H | 1.31-1.37 | 13.1-13.7 | ≥979 | ≥12.3 | ≥1350 | ≥17 | 335-366 | 42-46 | 120 | 248 | |
N48H | 1.37-1.43 | 13.7-14.3 | ≥1011 | ≥12.7 | ≥1274 | ≥16 | 358-390 | 45-49 | 120 | 248 | |
N50H | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥12.9 | ≥1274 | ≥16 | 374-406 | 47-51 | 120 | 248 | |
SH | N33SH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥1592 | ≥20 | 247-279 | 31-35 | 150 | 302 |
N35SH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11 | ≥1592 | ≥20 | 263-295 | 33-37 | 150 | 302 | |
N38SH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥1592 | ≥20 | 287-318 | 36-40 | 150 | 302 | |
N40SH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-334 | 38-42 | 150 | 302 | |
N42SH | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1592 | ≥20 | 318-350 | 40-44 | 150 | 302 | |
N45SH | 1.32-1.38 | 13.2-13.8 | ≥994 | ≥12.5 | ≥1592 | ≥20 | 335-366 | 42-46 | 150 | 302 | |
UH | N30UH | 1.08-1.16 | 10.8-11.6 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-255 | 28-32 | 180 | 356 |
N33UH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-279 | 31-35 | 180 | 356 | |
N35UH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11 | ≥1990 | ≥25 | 263-295 | 33-37 | 180 | 356 | |
N38UH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥1990 | ≥25 | 287-318 | 36-40 | 180 | 356 | |
N40UH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1990 | ≥25 | 302-334 | 38-42 | 180 | 356 | |
N42UH | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1990 | ≥25 | 318-350 | 40-44 | 180 | 356 | |
EH | N30EH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-255 | 28-32 | 200 | 392 |
N33EH | 1.14-1.21 | 11.4-12.1 | ≥851 | ≥10.7 | ≥2388 | ≥30 | 247-279 | 31-35 | 200 | 392 | |
N35EH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11 | ≥2388 | ≥30 | 263-295 | 33-37 | 200 | 392 | |
N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 200 | 292 | |
AH | N28AH | 1.04-1.12 | 10.4-11.2 | ≥772 | ≥9.70 | ≥2786 | ≥35 | 207-239 | 26-30 | 230 | 446 |
N30AH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2786 | ≥35 | 223-255 | 28-32 | 230 | 446 | |
N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 230 | 446 |
5. Quality Control and Equipment View
FAQ
1. Q: Which is the strongest type of magnet?
A: Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.
2. Q: What are the size limitations on manufacturing neodymium magnets?
A: The limits include:
2" max in magnetized direction
4" max diameter for discs and rings
4" max length and width for blocks
1/32" minimum on thickness on any magnet
1/16" minimum diameter on outer diameter
1/16" minimum diameter on any hole
3. Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please kindly advise the following items:
Dimensions, sizes, shape and drawing with tolerances.
Material grade or magnetic properties.
Magnetic direction, quantity. Surface coating (if necessary).
Any special packing, delivering or other requirements.
4. Q: What about the sample time and charge?
A: 7-10 days if the sample have to be customized, charge according to your design.
3-7 days for our existing samples for reference
5. Q: What about the delivery time of your products?
A: 10-15days.
Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.
6. Q: Could you provide me the shortest lead time?
A: That's based on whether we have the available materials in stock, we will try our best to satisfy you if any urgency.
7. Q: What is your MOQ?
A: 10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.
8. Q: How to pay you?
A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
Western Union cash - for small order or samples order.
Other payment: Paypal.
Different areas may exist some differences.
9. Q: Could I pay a visit to your factory?
A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.
10. Q: Where is your plants?
A: Our plant located in Shangling Industrial Zone,Shuangshui Town,Xinhui District,Jiangmen city,Guangdong,China. About 90 minutes from Guangzhou Airport by car.
11. Q: If I have more questions, where can I get the answer?
A: Any issue, please feel free to contact us any time.
Tel: 0086 750 3369862/ 0086 750 3369189
Fax: 0086 750 3369362
Finally---Why you choose us?
1. Magsource qualified by IATF16949:2016,ISO14001, RoHS, SGS, REACH.
2. 8 years export experiences makes us well know how to satisfy you.
3. The best quality with reasonable price.
4. Fast and on-time delivery.
