Descriptioin of Neodymium Magnet Grid Magnetic Separator NdFeB Magnet Filter:

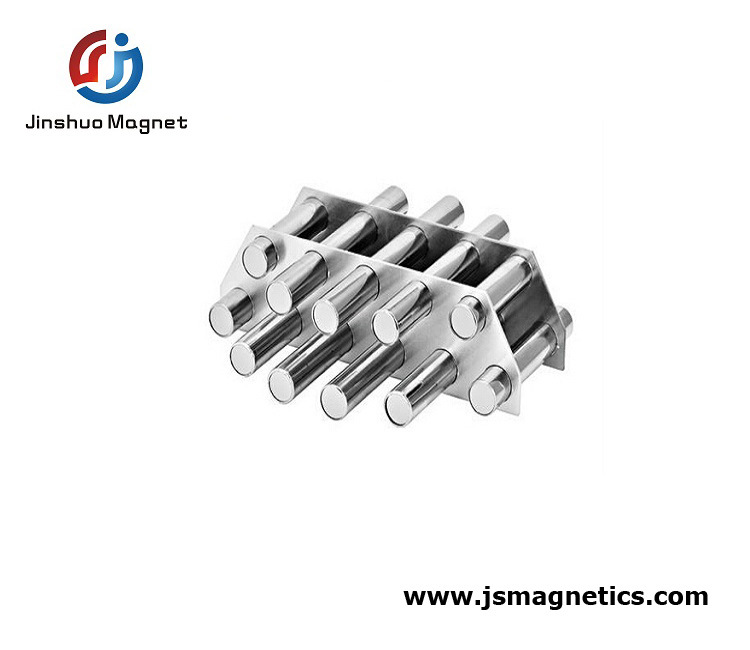

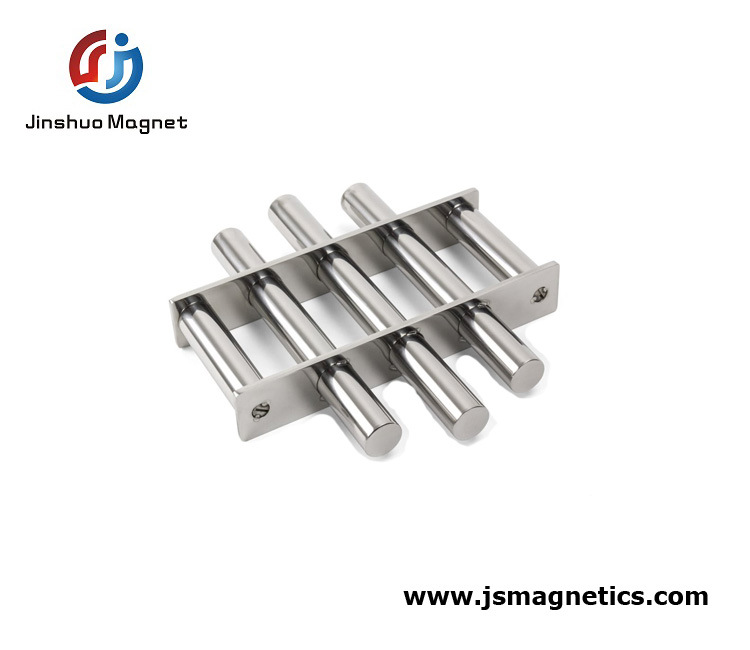

Magnet Grid, Magnet Grate is made from the powerful rare earth magnets (NdFeB or SmCo) or Ferrite magnets in a seamless stainless steel tube ( 304 or 316).
Magnet grids are widely used in various fields including the chemical industry, the foodstuff industry, the pharmaceutical industry, and etc.
When liquor containing ferrous substances pass through the framework, the iron or steel substances will be attached to the wall of the filter bars and magnetic cartridges.
Magnetic Grate's max surface gauss can reach around 15000GS. Sizes and lengths of the magnet filter tubes and shapes of the frameworks can vary as per clients' requests.
| Part Number | D(mm) | L(mm) | H(mm) | Quantity of Magnet Bar (pcs) |
| JS-RGMAG-150 | 150 | 125 | 40 | 3 |
| JS-RGMAG-200 | 200 | 175 | 40 | 4 |
| JS-RGMAG-250 | 250 | 225 | 40 | 5 |
| JS-RGMAG-300 | 300 | 275 | 40 | 6 |
| JS-RGMAG-350 | 350 | 325 | 40 | 7 |
| JS-RGMAG-400 | 400 | 375 | 40 | 8 |
| JS-RGMAG-450 | 450 | 425 | 40 | 9 |
| JS-RGMAG-500 | 500 | 475 | 40 | 10 |
| JS-RGMAG-550 | 550 | 525 | 40 | 11 |
| JS-RGMAG-600 | 600 | 575 | 40 | 12 |
| Part Number | L(mm) | W(mm) | H(mm) | Quantity of Magnet Bar (pcs) |
| JS-SGMAG-150 | 150 | 150 | 40 | 3 |
| JS-SGMAG-200 | 200 | 200 | 40 | 4 |
| JS-SGMAG-250 | 250 | 250 | 40 | 5 |
| JS-SGMAG-300 | 300 | 300 | 40 | 6 |
| JS-SGMAG-350 | 350 | 350 | 40 | 7 |
| JS-SGMAG-400 | 400 | 400 | 40 | 8 |
| JS-SGMAG-450 | 450 | 450 | 40 | 9 |
| JS-SGMAG-500 | 500 | 500 | 40 | 10 |
| JS-SGMAG-550 | 550 | 550 | 40 | 11 |
| JS-SGMAG-600 | 600 | 600 | 40 | 12 |
Details About Neodymium Magnet Grid Magnetic Separator NdFeB Magnet Filter:
Production Time of Neodymium Magnet Grid Magnetic Separator NdFeB Magnet Filter:
Samples are available, and production time is 3-15 days, based on material and dimensions. Free samples are also ok if we have materials in our stock. Lead time of batch order is 15-30 days except large quantity.
Inspection of Neodymium Magnet Grid Magnetic Separator NdFeB Magnet Filter:
Normally neodymium magnet grid will be sampling inspected when they are finished.
If you have requirements about inspection, like full inspection, we will also do it for you.
Pictures of finished magnets, package, demagnetizing curves, inspection report will be provided when goods are ready.
Package and Shipping Methods:
Standard Export Package, such as shielding carton, wooden case, pallet etc.
Goods will be sent out by Express ( UPS, DHL, Fedex, TNT ), By Air, By Sea etc.
Enquiry About Neodymium Magnet Grid Magnetic Separator NdFeB Magnet Filter:
In order to get a suitable quote quickly from us, please provide us:
1. Dimensions of neodymium magnet bar/grid/filter you need, diameter, length, drawing will be perfect.
2. Requirements about two endings: Flat or thread on two endings
3. Surface Gauss
4. Maximum Operating Temperature
5. Application: Industry or food field
6. Quantity
7. Shipping Method, By Express, By Air or By Sea.
8. Other requirements (Package, Inspection etc)
